Palisade Gate

palisade fence

Palisade gate is a movable security fence formed with vertical pales, vertical posts and horizontal rails. The palisade gate and palisade fence panel can provide a security environment for you together. The components of palisade gate can be produced with low carbon steel, mild steel, which has good rigidity and corrosion resistance, so you can use them for a long time. The palisade gate is difficult to climb and the large spikes make the palisade gate more safe. You can choose singular pedestrian gate or double leafs gate, you can also choose swing palisade gate or sliding palisade gate, all of them are available in a variety of heights, strengths, post design and colors. Palisade gate can provide an effective way to protect any properties.

Palisade gate specification

Pale head: square, triple pointed, one pointed, rounded, rounded and notched.
Surface treatment: electrical galvanized, hot-dipped galvanized, PVC coated, powder coated and the color as you want.
Height: from 1.2 m to 3.6 m or as your request.
Type: swing gate and sliding gate.
Packing: wooden pallet, metal packing, as customer request.

Palisade gate types
Palisade gate has four types: singular sliding gate, singular swing gate, double leaves swing gate and cantilever palisade gate.

Singular sliding palisade gate

Materials: low carbon steel, mild steel, hot or cold rolled steel.
Surface treatment: hot-dipped galvanized or electric galvanized, PVC coated, powder coated and so on.
Height: 1.2 m, 1.8 m, 2.0 m, 2.0 m, 2.4 m, 3.0 m.
Width: 1 m, 1.2 m, 1.5 m, 2.0 m, , 3.0 m, 4.0 m, 5.0 m.
Palisade pales: W section pales, D section pales, angle section pales.
Pales head: one pointed, triple pointed, round, round & notch, square, spikes.
Horizontal rails: angle steel.
Gate post: square post, RSJ.
Gate latch: heavy duty slide latch.
Gate fittings: fishplates, post clamps, gate hinge, bolts and nuts.

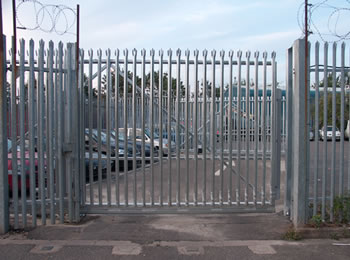

PG-1: The palisade gate can be made into singular pedestrian palisade gate, it can also made into double palisade gates, its style is various.

Singular swing palisade gate

Materials: low carbon steel, mild steel, hot or cold rolled steel.
Surface treatment: hot-dipped galvanized or electric galvanized, PVC coated, powder coated and so on.
Height: 1.2 m, 1.8 m, 2.0 m, 2.0 m, 2.4 m, 3.0 m.
Width: 1 m, 1.2 m, 1.5 m, 2.0 m, , 3.0 m, 4.0 m, 5.0 m.
Palisade pales: W section pales, D section pales, angle section pales.
Pales head: one pointed, triple pointed, round, round & notch, square, spikes.
Horizontal rails: angle steels.
Gate post: square post, RSJ.
Gate latch: heavy duty slide latch.
Gate fittings: fishplates, post clamps, gate hinge, bolts and nuts.

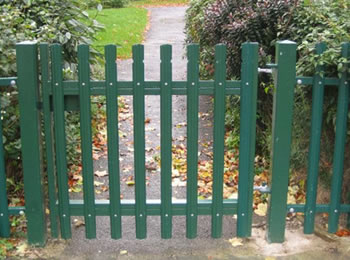

Green powder coated palisade gate with palisade fence as boundary of the park, the pales head type is rounded & notched.

PG-2: The palisade gate can be made into singular swing gate for pedestrian like in park, vegetable garden and so on.

Double leaves palisade gate

Materials: low carbon steel, mild steel, hot or cold rolled steel.
Surface treatment: hot-dipped galvanized or electric galvanized, PVC coated, powder coated and so on.
Height: 1.8 m, 2.0 m, 2.1 m, 2.4 m and 3.0 m.
Width: 2.0 m, 3.0 m, 4.0 m, 5.0 m, 6.0 m, 7.0 m, 8.0 m, 9.0 m and 10.0 m.
Palisade pales: W section pales, D section pales and angle section pales.
Pales head: one pointed, triple pointed, round, round & notch, square, spikes.
Horizontal rails: angle steels.
Gate post: square and RSJ beam.
Gate latch: heavy duty slide latch.
Gate fittings: fish plates, post clamps, gate hinge, bolts and nuts.

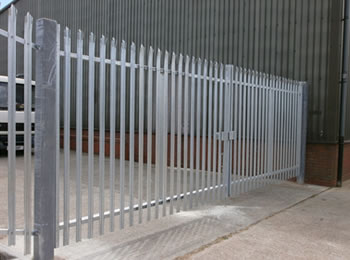

The palisade gate is made of two swing leafs, the gate is closed, deter the way to the plant together with the palisade fence.

PG-3: Palisade gate is difficult to climb, it can provide highest security for plant, company and other important places.

Cantilever electric palisade gate

Materials: low carbon steel, mild steel, hot or cold rolled steel.
Surface treatment: hot-dipped galvanized or electric galvanized, PVC coated, powder coated and so on.
Height: 1.8 m, 2.0 m, 2.1 m, 2.4 m, 3.0 m.
Width: 2.0 m, 3.0 m, 4.0 m, 5.0 m, 6.0 m, 7.0 m, 8.0 m, 9.0 m, 10.0 m, 11 m, 12 m and 13 m.
Palisade pales: W section pales, D section pales, angle section pales.
Pales head: one pointed, triple pointed, round, round & notch, square, spikes.
Horizontal rails: angle steels.
Gate fittings: fishplates, post clamps, gate hinge, bolts and nuts.

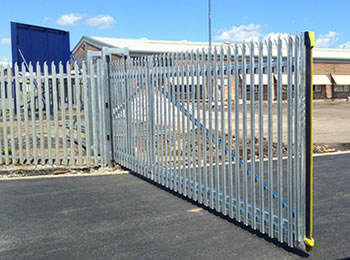

An opening cantilever palisade gate for a plant, the gate with palisade fence panel together serves as security fence for plant.

PG-4: The palisade gate can be made into swing and sliding, electric and manual.

Application:
Palisade gate serves as barriers for industrial and commercial premises, school and college, highway and railway, warehousing, residence and private mansions.
